EXHAUST ACCESSORIES
TYPICAL EXHAUST PIPE FLARES
EXHAUST FLANGES
 |
 |
 |
XF300FL Flange for Ford 300 Engine |
XF6.9FL Flange for Ford 6.9 Liter Diesel |
XC802FL200 2" GMC & Chevrolet |
XC802FL212V2-1/2" GMC & Chevrolet |
XC802FL234 2-3/4" GMC & Chevrolet |
|
XH6.9FL Flange for IH 6.9 Diesel |
XH7.3FL Flange for IH 7.3 Diesel |
|
V-CLAMPS |
 |
| PART NUMBER |
APPLICATION |
PART NUMBER |
APPLICATION |
| XCL379F |
FORD 370 |
XCL466VIH |
IH DT466 |
| XCL66VF |
FORD 6.6 LITER |
XCL390 |
CUMMINS 3.9 & 5.9 |
| XCL82TVG |
DETROIT 8.2 TURBO |
XCL83CMVIH |
CUMMINS 8.3 LITER |
| XCL82NAVG |
DETROIT 8.2 NON-TURBO |
XCL3116CTVIH |
CATERPILLAR 3116 |
| XCL360VIH |
IH DT360 |
XCL3208CTVIH |
CATERPILLAR 3208 |
| XCLT444VIH |
IH DT444E |
|
|
|
|
HEAVY DUTY EXHAUST CLAMPS
 |
| HEAVY DUTY CLAMPS |
| 1-7/8" ID |
XCL178HD |
| 2" ID |
XCL2HD |
| 2-1/4" ID |
XCL214HD |
| 2-1/2" ID |
XCL212HD |
| 2-3/4" ID |
XCL234HD |
| 3" ID |
XCL3HD |
| 3-1/2" ID |
XCL312HD |
| 4" ID |
XCL4HD |
|
|
SEAL CLAMPS
 |
SEAL CLAMPS |
2" ID |
XSC2 |
| 2-1/4" ID |
XSC214 |
| 2-1/2" ID |
XSC212 |
| 2-3/4" ID |
XSC234 |
| 3" ID |
XSC3 |
| 3-1/2" ID |
XSC312 |
| 4" ID |
XSC4 |
| 5" ID |
XSC5 |
|
|
 |
| LAP JOINT SEAL CLAMP WITH REDUCTION STEP IN BAND |
2" ID |
XSC2R |
| 2-1/4" ID |
XSC214R |
| 2-1/2" ID |
XSC212R |
| 2-3/4" ID |
XSC234R |
| 3" ID |
XSC3R |
| 3-1/2" ID |
XSC312R |
| 4" ID |
XSC4R |
| 5" ID |
XSC5R |
|
|
CONNECTORS, EXTENSIONS AND REDUCERS |
 |

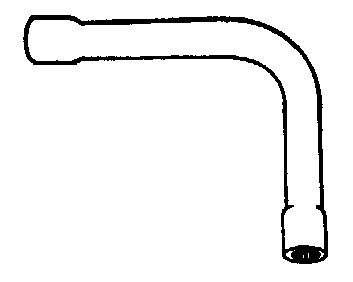

| 90 DEGREE CONNECTOR |
2" ID |
XJ90-2 |
| 2-1/4" ID |
XJ90-214 |
| 2-1/2" ID |
XJ90-212 |
| 2-3/4" ID |
XJ90-234 |
| 3" ID |
XJ90-3 |
| 3-1/2" ID |
XJ90-312 |
| 4" ID |
XJ90-4 |
|
|
|
 |
| TAILPIPE EXTENSION-STRAIGHT TYPE-24" LONG |
2" ID |
XX2 |
| 2-1/4" ID |
XX214 |
| 2-1/2" ID |
XX212 |
| 2-3/4" OD |
XX234 |
| 3" ID |
XX3 |
| 3-1/2" ID |
XX312 |
| 4" ID |
XX4 |
|
|
|
 |

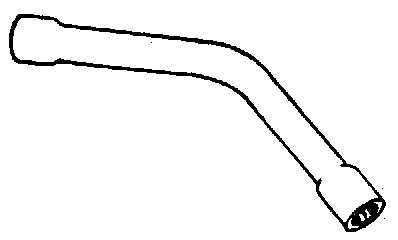

| 45 DEGREE CONNECTOR |
| 2" ID |
XJ45-2 |
| 2-1/4" ID |
XJ45-214 |
| 2-1/2" ID |
XJ45-212 |
| 2-3/4" ID |
XJ45-234 |
| 3" ID |
XJ45-3 |
| 3-1/2" ID |
XJ45-312 |
| 4" ID |
XJ45-4 |
|
|
|
 |

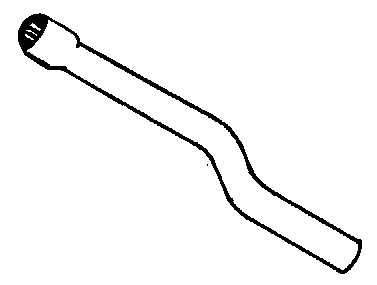

| TAILPIPE EXTENSION-OFFSET TYPE-24" LONG |
| 2" ID |
XXO2 |
| 2-1/4" ID |
XXO214 |
| 2-1/2" ID |
XXO212 |
| 2-3/4" ID |
XXO234 |
| 3" ID |
XXO3 |
| 3-1/2" ID |
XXO312 |
| 4" ID |
XXO4 |
|
|
|
 |
| TAILPIPE EXTENSION-90 DEGREE-TURNDOWN TYPE-24" LONG |
2" ID |
XX90-2 |
| 2-1/4" ID |
XX90-214 |
| 2-1/2" ID |
XX90-212 |
| 2-3/4" ID |
XX90-234 |
| 3" ID |
XX90-3 |
| 3-1/2" ID |
XX90-312 |
| 4" ID |
XX90-4 |
|
|
|
 |
SLEEVES-6" LONG |
| 2" ID |
XJS2 |
| 2-1/4" ID |
XJS214 |
| 2-1/2" ID |
XJS212 |
| 2-3/4" ID |
XJS234 |
| 3" ID |
XJS3 |
| 3-1/2"ID |
XJS312 |
| 4" ID |
XJS4 |
|
|
|
 |

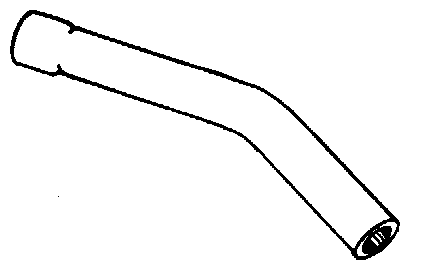

| TAILPIPE EXTENSION-45 DEGREE-TURNDOWN TYPE-24" LONG |
| 2" ID |
XX45-2 |
| 2-1/4" ID |
XX45-214 |
| 2-1/2" |
XX45-212 |
| 2-3/4" ID |
XX45-234 |
| 3" ID |
XX45-3 |
| 3-1/2" ID |
XX45-312 |
| 4" ID |
XX45-4 |
|
|
|
 |
| PIPE REDUCERS-6" Long |
| 2" ID TO 1-7/8" OD |
XR1 |
| 2-1/4" ID TO 2" OD |
XR2 |
| 2-1/2" TO 2-1/4" OD |
XR3 |
| 2-3/4" ID TO 2-1/2" OD |
XR4 |
| 3" ID TO 2-3/4" OD |
XR5 |
| 1-7/8" ID TO 1-7/8" OD |
XR6 |
| 2" ID TO 2" OD |
XR7 |
| 2-1/4" ID TO 2-1/4" OD |
XR8 |
| 2-1/2" ID TO 2-1/2" OD |
XR9 |
| 2-3/4" ID TO 2-3/4" OD |
XR10 |
| 3" ID TO 3" OD |
XR11 |
| 4" ID TO 4" OD |
XR12 |
| 3-1/2" ID TO 3" OD |
XR13 |
| 4" ID TO 3-1/2" OD |
QXR14 |
| 3" ID TO 2-1/2" OD |
XR15 |
| 3-1/2" ID TO 3-1/2"OD |
XR16 |
SPECIAL REDUCERS |
| 2-3/8" ID TO 2-3/8" OD X 10.25" LONG |
XR18 |
| 2-3/8" ID TO 2-3/8" OD X 26.25" W. SLEEVE |
XR19S |
| 2-3/8" ID TO 2-3/8" OD X 55.25" LONG W SLEEVE |
XR20S |
| 3" ID TO 2-1/2" OD X 6" LONG W. HANGER |
XR21H |
| 3" ID TO 2-1/2"OD X 41.75" LONG |
XR22 |
| 3" ID to 2-1/2" OD x 42.25" |
XR24 |
| 3" ID to 2-1/2" OD x 32.25" |
XR25 |
|
|
|
|
|
 |

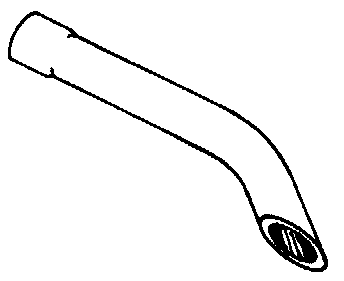

| TAILPIPE EXTENSION-45 DEGREES- TURNDOWN TYPE |
| ID |
12" |
24" |
| 2" |
XXTDS2 |
XXTD2 |
| 2-1/4" |
XXTDS214 |
XXTD214 |
| 2-1/2" |
XXTDS212 |
XXTD212 |
| 2-3/4" |
XXTDS234 |
XXTD234 |
| 3" |
XXTDS3 |
XXTD3 |
| 3-1/2" |
XXTD312 |
XXTD312 |
| 4" |
XXTDS4 |
XXTD4 |
|
|
For Turndown Extension without Expansion - Please Add -1 to Part Number |
|
 |
| STRAIGHT CONNECTORS |
| ID |
6" LONG |
10" LONG |
| 2" |
XJ2-6 |
XJ2-10 |
| 2-1/4" |
XJ214-6 |
XJ214-10 |
| 2-1/2" |
XJ212-6 |
XJ212-10 |
| 2-3/4" |
XJ234-6 |
XJ234-10 |
| 3" |
XJ3-6 |
XJ3-10 |
| 3-1/2" |
XJ312-6 |
XJ312-10 |
| 4" |
XJ4-6 |
XJ4-10 |
|
|
|
 |

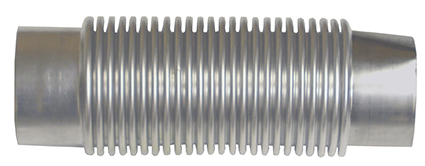

STAINLESS STEEL BELLOWS
XX3FLXB 3" X 12"
XX312FLXB 3-1/2" X 12"
XX4FLXB 4" X 12" |
|
 |

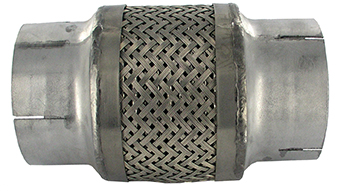

FLEX CONNECTOR
XU212FLXC 2-1/2" Diameter
XU3FLXC 3" Diameter
XU312FLXC 3-1/2" Diameter
XU4FLXC 4" Diameter |
|
 |
FLEX ASSEMBLY W. BUBBLE END- KIT
XSE-2F 2" OD X 12" Length for Non-DEF Systems
XSE-218F 2-1/8"OD X 12" Length for DEF System
XSE-214F 2-1/4" X 12" Length (was formerly XSE-3F for DEF Systems
Kit inludes proper Swivel Clamp
Commonly used on Sprinter systems |
|
 |

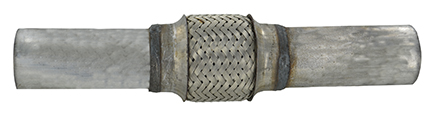

FLEX ASSEMBLY W. STRAIGHT ENDS
XSE-2FS 2" OD X 12" Length
XSE-214FS 2-1/4" OD x 12" Length
Commonly used on Sprinter systems |
|
|
